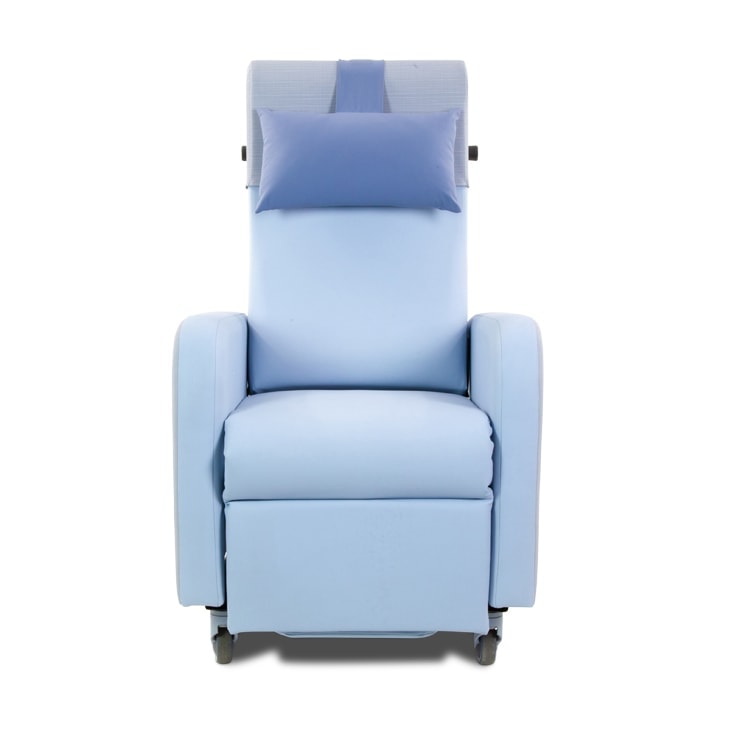

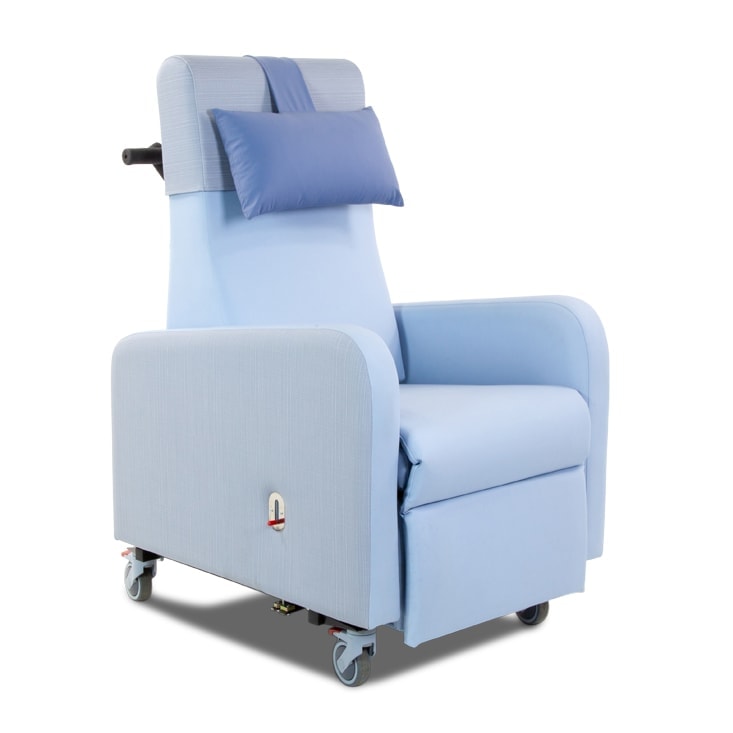

Oregon

Fabric Shown:
Manila Ore outside panels/ Valencia Skylight inner

Oregon

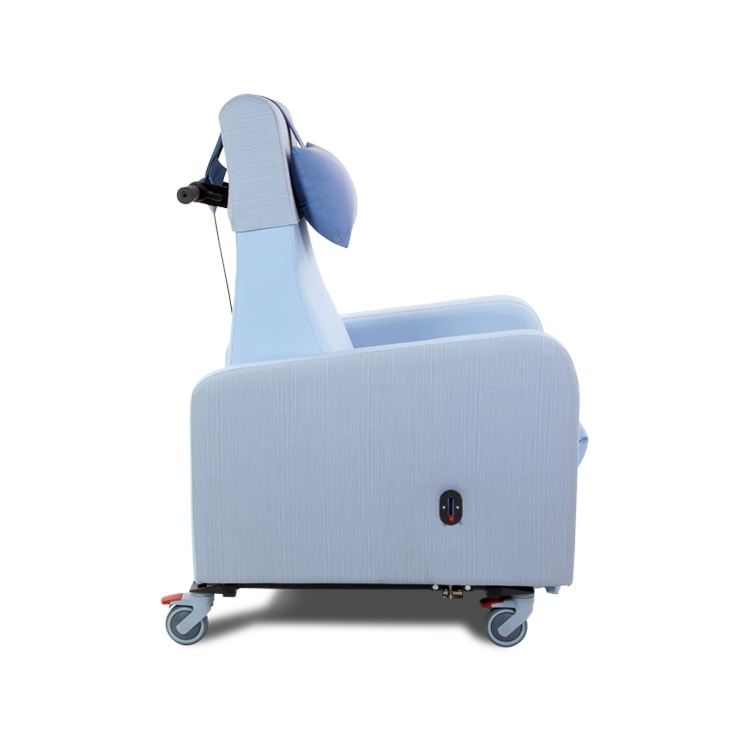

Patient transfer recliner chair

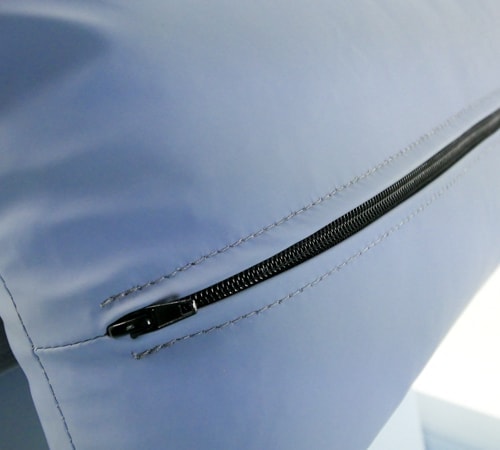

This chair has been specially designed with swing away arm systems to both sides, this allows the carer patient access by the side of the chair and for the cleaning of any spillages. With limited seams in the design of this chair, it assists with infection control and patient care, without jeopardising the comfort of the patient. This chair has large lockable castors allowing the chair and the patient to be transferred to multiple locations.



Suitable for:

  • General ward use
  • Day care



Standard features:

  • Flat back design

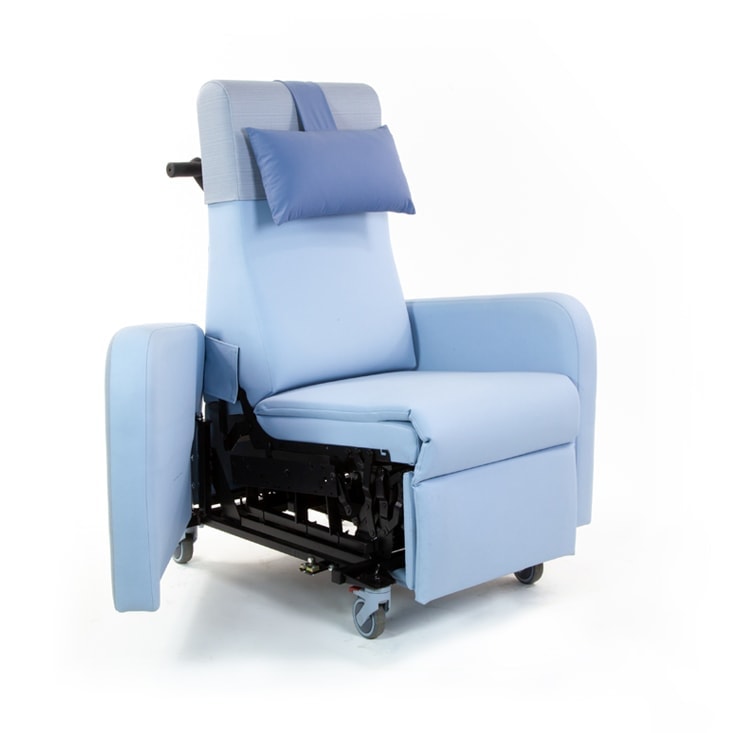

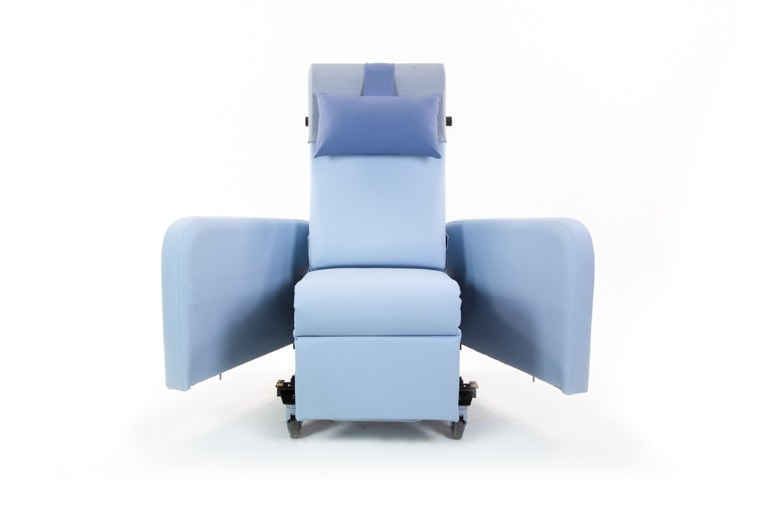

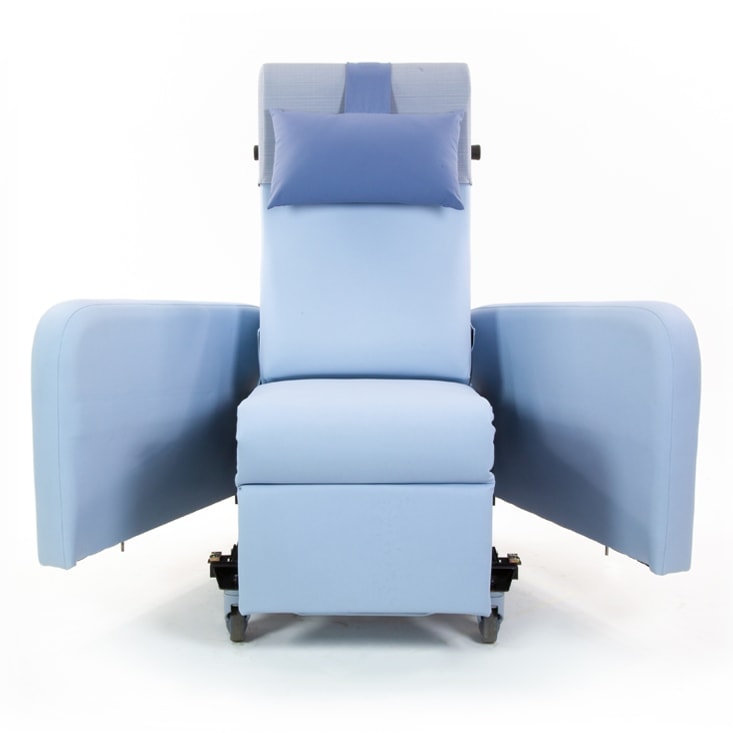

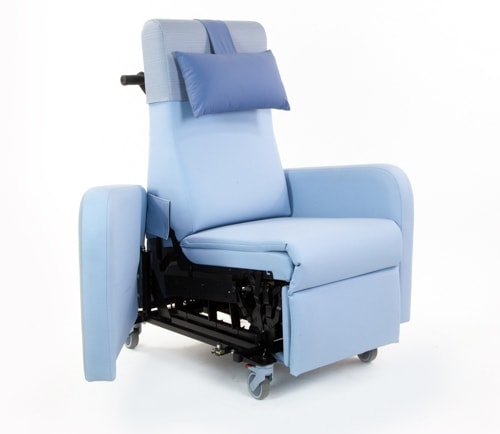

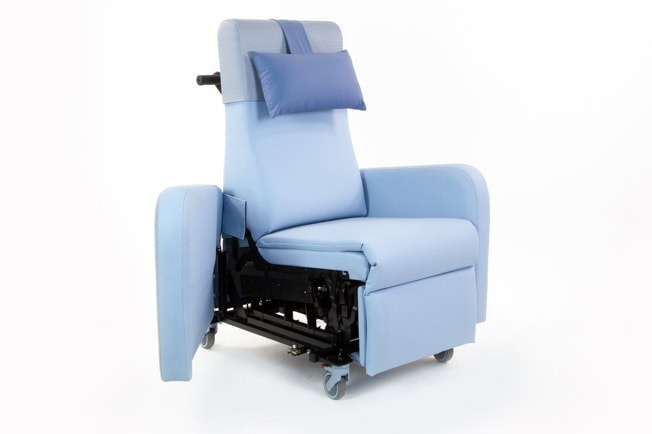

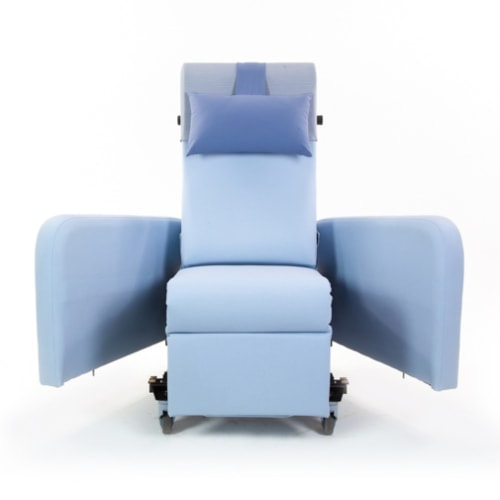

  • Swing open arms both sides
  • Large Heavy-duty lockable castors
  • Handlebar to rear

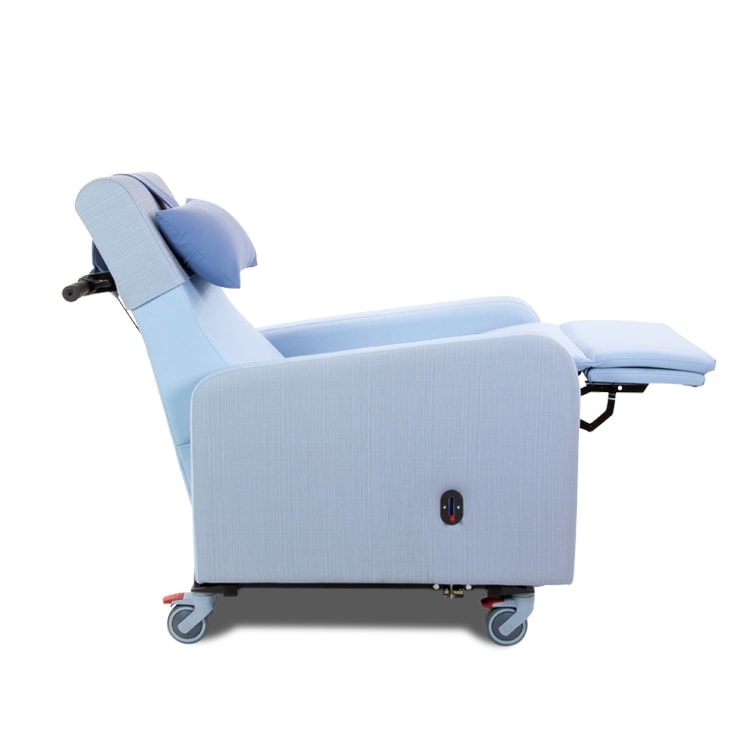

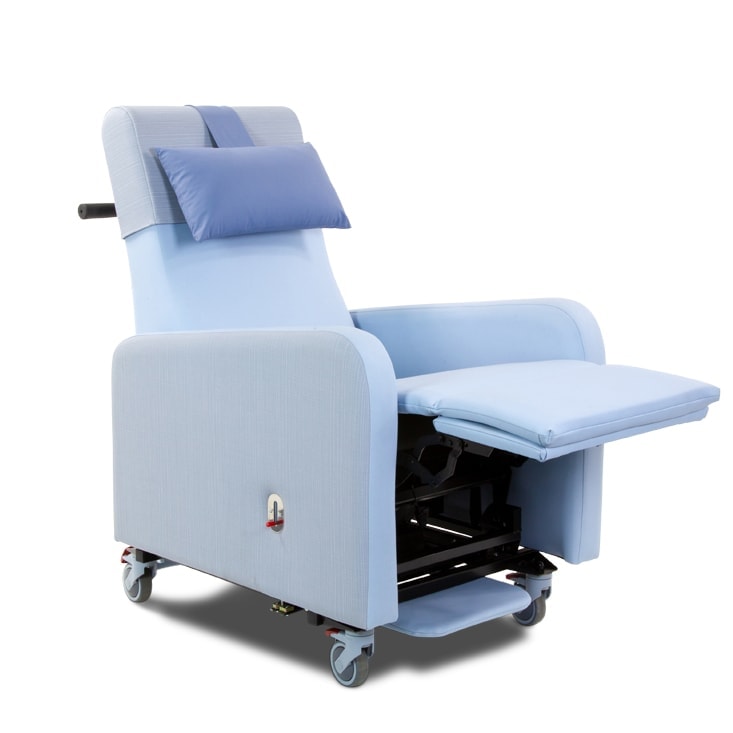

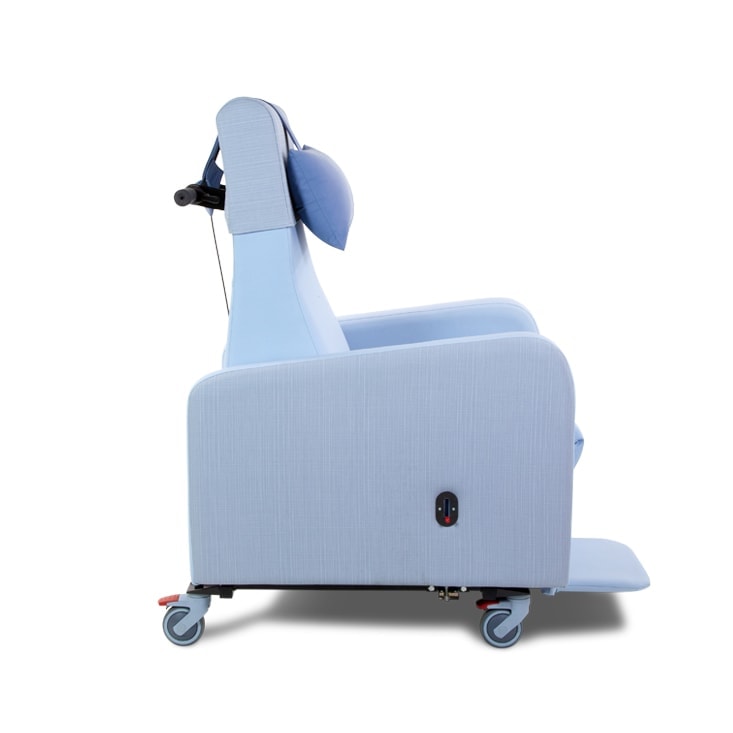

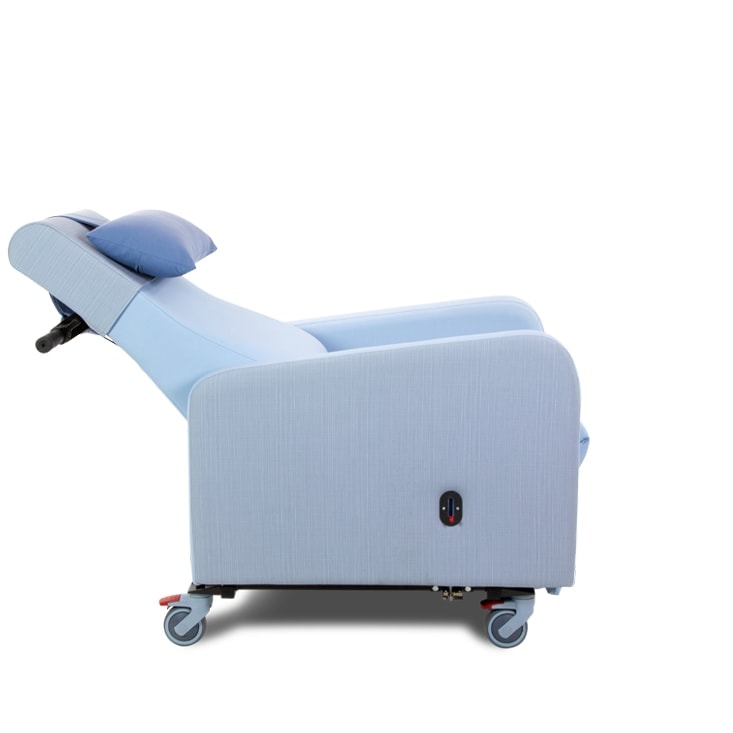

  • Manual or Electric single tilt in space recliner
  • Trendelenburg position to allow desired flat position quickly
  • Max user weight 130kg (20stone)

Download Spec Sheet

Dimensions



mm Inches
Seat height to floor 560 22

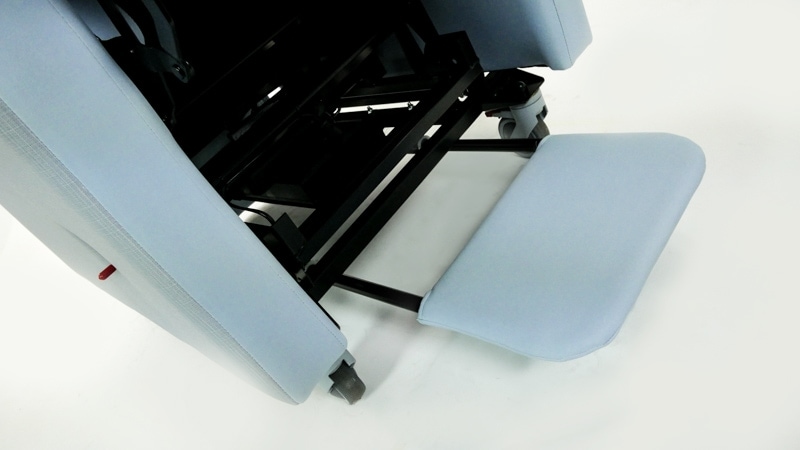

Seat height to footplate 460 18
Seat width 510 20
Seat depth 510 20
Back height 760/790 30/31
Arm height 180 7
Overall height 1270 50
Overall width 740 29
Overall depth 890 35
Arm width 110 4.5

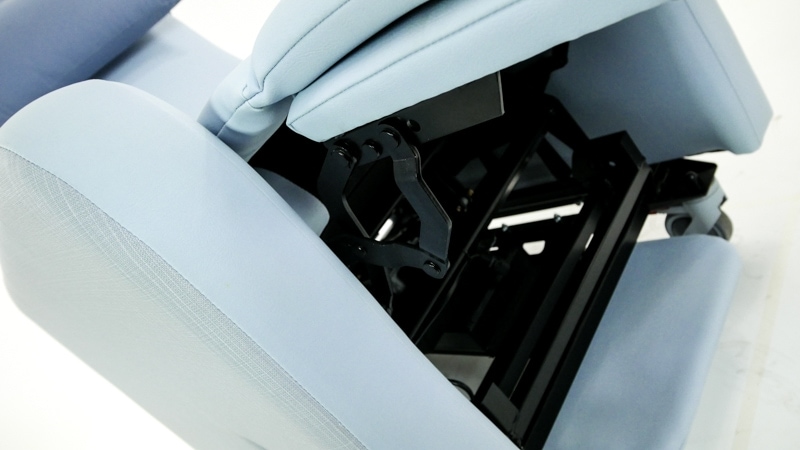

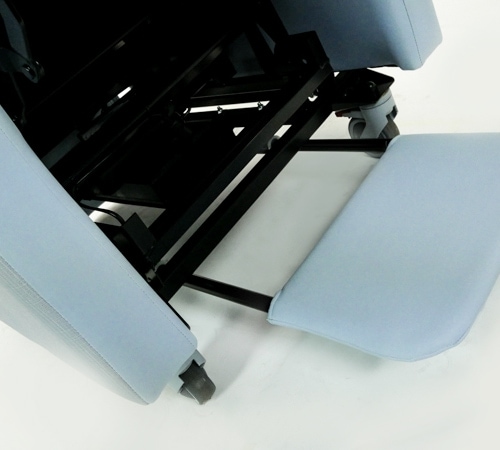

Mechanism Options

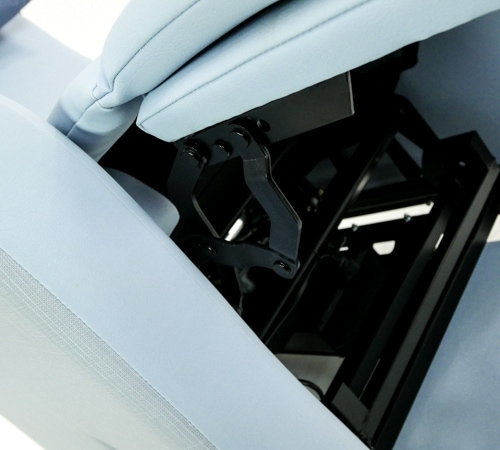

Manual and Single electric Tilt in space with Piston



Oregan2

Fabric Options

View our vinyl range of fabrics

Cadet Shieldplus™

Valencia

Haven Shieldplus™

Dartex (VP)

Other bespoke fabrics available upon request.

Optional Accessories


  • Head Pillow with weighted tab
  • Head Roll with weighted tab
  • Head protector sleeve
  • Full length arm cap protective covers
  • Drop down side table
  • Accupak rechargeable battery system with alarm
         (Enable the chair to be wireless - electric chairs only)
  • USB charging point to outside arm
         (will have separate power supply)
  • Pressure management seating Liquiform (Med- High) with Dartex VP fabric to seat and leg rest cover
  • Wall mounted transformer
         (avoid having the transformer on the floor)
  • Magnet handset
         (magnetic connection for storage of handset to outside arm)
Head Pillow with weighted tab

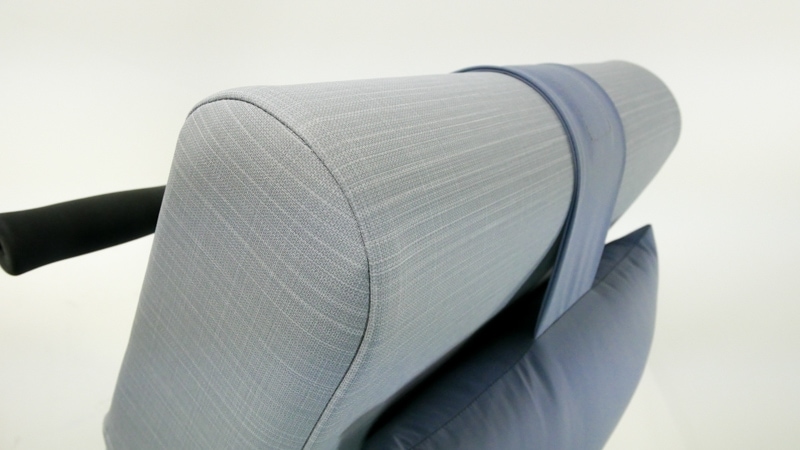

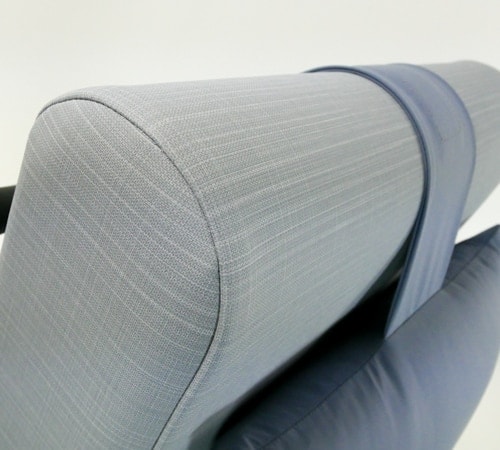

Head Roll with weighted tab
Head protector sleeve
Full length arm cap protective covers
Drop down side table
USB charging point to outside arm
Liquiform seating with Dartex fabric
Wall-mounted transformer

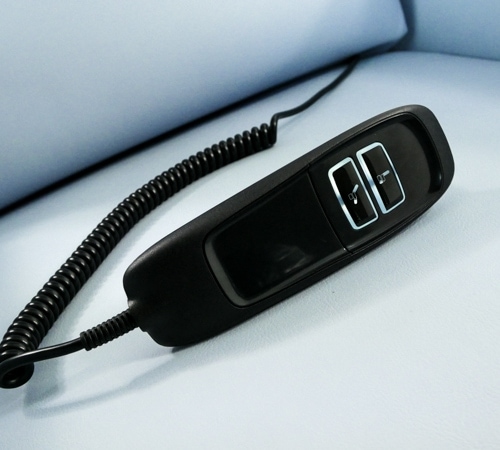

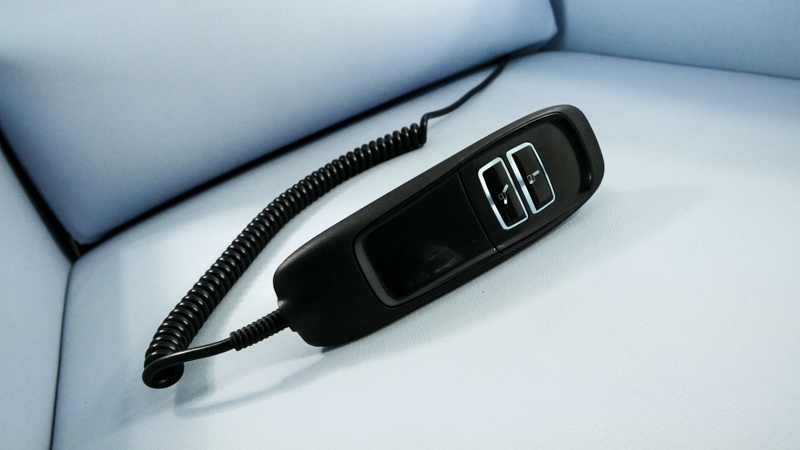

Magnet handset
