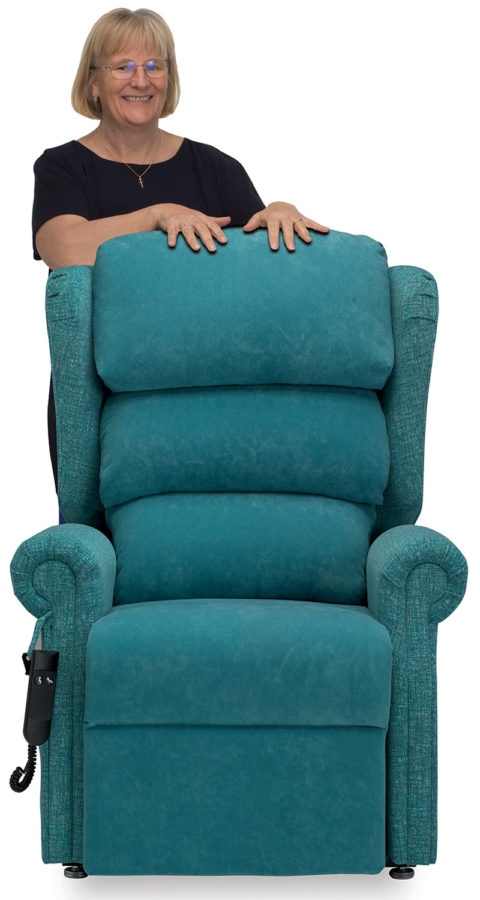

C-air Bespoke Pressure Care Riser Recliner Chair

Bespoke construction built to a user’s specific requirements – a rise recliner health chair for any environment.

Fabric Shown:
Inner Panvelle Stretch multi way fabric / Lara Teal Outer

The C-air is one of our most popular health chairs as it combines excellent pressure management features with the ability for the client or health professional to select from the following made to measure options and additional design features, thus providing a tailored solution.

Made to Measure Options:

  • Seat Width
  • Seat Height
  • Seat Depth
  • Back Height
  • Arm Rest Height

Design Choice:

  • Arm rest design with 3 choices
  • Removable arm
  • Seat depth adjustment

With a choice of Dual or Single Tilt in Space or Standard Dual motors the C-air comes as standard with a fixed waterfall back cushion, but there is the option to choose from a range of seven removable and interchangeable back cushion styles to compliment the choice of nine removable and interchangeable seat cushions – each option being designed with different postural and pressure management qualities.  These interchangeable options ensure that the chair can be easily adapted over time for changing conditions or new users, giving greater longevity of usage.

Its uniqueness lies in the ability to tailor the chair to a user’s individual measurements for comfort, postural and pressure management – truly making it a bespoke solution.

This chair can be used in any health environment or for home care and is designed to blend into the décor.

It is an all-purpose healthcare chair that supports the management of good pressure and posture management and is ideal for:

  • Frail elderly
  • Osteoarthritis
  • Rheumatoid arthritis

Its uniqueness lies in the ability to tailor the chair to a user’s individual measurements for comfort, postural and pressure management – truly making it a bespoke solution.

The Tilt in Space (STIS) and Dual Motor mechanisms make this chair ideal for clients with changing and deteriorating neurological conditions. It allows for multi positioning of the legs to reduce oedema and fluid retention, leading to increased comfort.  The positional options can support people who have problems swallowing as well as those with blood pressure e.g. postural hypotension.

The chair can also be used as part of a 24-hour postural care programme to reduce the risk of skin breakdown and its features also ensure that a user can be repositioned to allow for optional occupational performance, thus allowing an individual to engage in activities they want to do.

The chair can be used with either a mobile or overhead hoist to support safe moving and handling techniques for carers.

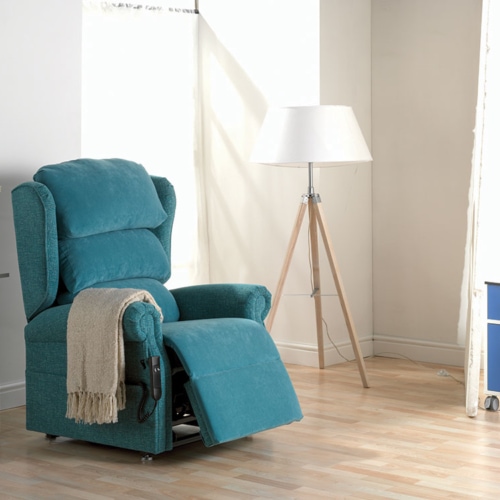

C Air Healthcare Chair 002 Repose Furniture C-air

Environments:

healthcare 2 Repose Furniture C-air nursing and care home Repose Furniture C-airhome Repose Furniture C-air

Made to Measure and the ability to make certain design choices are just two of the key factors in the success of the C-air which coupled with a range of features to aid pressure management, postural control and comfort make this one of our most versatile and popular health chairs.  It comes with the following key features as standard. The key features listed below are standard, you can purchase additional features and these are detailed in the Optional Accessories Section.


Made to Measure

Professionals love this chair as they can design the chair to the exact size requirements of their clients.

Choose the dimensions of the:

  • Seat Width
  • Seat Height
  • Seat Depth
  • Back Height
  • Arm Rest Height

For more information please see Size Guide Section.



Mechanisms

The C-air is available with a Dual Tilt in Space (DTIS) or Single Tilt in Space (STIS) mechanism or a Standard Dual Motor Mechanism.

On the DTIS and STIS mechanisms the Tilt in Space movement allows the seat back angle to remain the same whilst the whole seating system is tilted backwards which prevents shearing and friction.

The Dual Tilt in Space mechanism has more positional movement options than the STIS one as it also has independent backrest recline and independent leg rest movement. This enables a greater range of positions to aid pressure management, postural control and comfort.

Finally, the Standard Dual mechanism has no Tilt in Space feature, but it does have independent backrest recline and independent leg rest movement to provide a range of postural positions.

There is also the option of VAL Technology on both the Single and Dual Tilt in Space mechanisms but only on the 159kg (25 stone mechanism). This optional mechanism can be fitted under the chair and allows the rise angle to be set to support individuals to a standing position. Choose from three positions 10º, 20º or 30º.

For further details on these mechanisms, with video clips, visit the Mechanism Section.

Mechanisms 250


Pressure Management Back Cushions

The C-air comes with a fixed waterfall back as standard.  However, there is a choice of a removable back cushion.  Choose from seven interchangeable pressure management back cushions that enable the chair to be adapted to a single user’s changing needs or to adapt the chair to another user. This ensures greater longevity of its usage.

In addition, all removable cushions can be repositioned to suit a user’s individual seating preferences and fibres added or removed from fibre filled cushions to adjust firmness. Covers can also be removed for cleaning and replacement.  See Back Cushion Section for details of the individual cushions.

Cair Back Cush


Pressure Management Seat Cushions

The C-air comes with a choice of nine interchangeable seat cushions each with different pressure management features.  You can purchase one or more cushions to support the different needs of individuals who may use this chair.

Cushions and covers are removable for cleaning or replacement.  With all these seat cushions we recommend a fabric with four way stretch properties to aid reduction of shear and friction.  See Seat Cushion Section for details of the individual cushions.

Cair Seat Cush


Chaise Cover

The C-air benefits from a single, full seat cover. This chaise reduces the risk of pressure areas developing due to pinch points and shear and friction when the chair reclines. Designed with a memory foam insert the chaise offers deep comfort.

The chaise cover and memory foam can be removed for cleaning and replacement.

C Air Chaise


Castors

The C-air comes with durable castors built in as standard. There is an option to upgrade to either heavy duty lockable castors or glides.



Loop for Handset and Side Pocket

Both these come as standard on the C-air and are fitted to the left hand side of the chair.

There is the option to change these to the right hand side and to have a pocket on both sides.



The following features can be purchased to enhance the functionality of the chair.

Arm Rest Designs*

The C-air has a choice of three different arm rest styles as shown below. With the wide arm style there is the option to upgrade to a Memory foam or Coolform gel interior with a vapour permeable fabric.



Scroll

Scroll Arm

Wooden

Wooden Knuckle

Wide Flat

Wide Flat Arm

Removable Arms*

A removable arm rest can be fitted to the RHS, LHS or both sides of the chair.



Seat Depth Adjustment

The C-air comes with the option to alter the seat depth with a choice of two sets of detachable adjuster pads, 25.4mm (1") or 50.8mm (2").

The seat depth should be long enough to support the upper part of the legs whilst allowing the back to rest comfortably on the backrest. If the seat is too long the user is likely to slouch in the chair to get their feet on the floor, which puts extra pressure on their lower spine, if too short it will cause additional pressure on the thighs risking potential skin breakdown.

Seat Depth

Headrests

There are five headrests to choose from, all of which come with a Velcro tab allowing them to fit over the top cushions.  For further details on each of these options please refer to the Headrest Section.

  • Head roll
  • Small head pillow
  • Small profile headrest
  • Large profile headrest
  • Midline headrest
Head Roll

High Wear Areas

The following covers, in matching fabric, can be purchased to protect high wear areas:

  • Full length arm covers
  • Head cover

Full Length Arm Cover

Head Cover


Castors or Glides*

There is an option to upgrade to either:

  • Heavy duty lockable castors, but please note that there will be an increase in the seat height of 25.4mm (1”).

Or

  • Glides for wooden or laminated floors. In addition, there is a choice of anti-slip cups for the glides.


Carer Handset Loop*

This is fitted to the back of the chair for easy carer access.



Magnet for Handset*

Hidden under the fabric on the side of the arm rest it connects to the magnet in the handset.



Side Pocket*

This can be fitted onto either side of the chair.



Safety Options*

For further details on the options below please refer to Safety Options Section.

  • Styleline handset with on/off button
  • Accupak rechargeable battery system for mains free usage
  • 20 cycle back-up unit
  • Enclosure skirt


* Please note that some of these additional features will need to be fitted at the point of manufacture.

All our health fabrics are Waterproof, Anti-MRSA, Anti-bacterial, Anti-fungal, Crib 5 and bleach cleanable. All cushions and cushion covers are removable for cleaning purposes.

For our full range of health fabrics please view our:

Healthcare fabrics page

Other options available on request.

Fabric Swatches 960

Overall Weight Limits

The C-air has a weight limit of 127 Kg (20 stone) as standard, but with the option to choose either a 159 Kg (25 stone) or a 222 Kg (35 stone) model. There is a maximum leg rest weight limit which will be dependent on the mechanism selected.

  • Small Sized chair – available with a 127 Kg and 159 Kg mechanisms
  • Medium Sized chair – available with 127 Kg, 159 Kg and 222 Kg mechanisms
  • Large Sized chair - available with 127 Kg, 159 Kg and 222 Kg mechanisms

Seat Cushion Weight Limits

Please note that the seat cushion design choices will be limited on the 159 Kg and 222 Kg models because certain pressure management seat cushion options have their own overall weight limits. These include the Celliform and Dynaform seat cushions, details of which can be found in the Seat Cushion Section. The maximum leg rest weight limit is unaffected by the seat cushion chosen.

VAL Technology Choices

Available only on the 159Kg (25 stone), STIS and DTIS mechanisms with the medium and large sized chairs.

Important Dimensions

  Small Medium Large
Seat Height* 406mm (16") 457mm (18") 508mm (20")
Seat Width 457mm (18")
508mm (20")
559mm (22")
457mm (18")
508mm (20")
559mm (22")
457mm (18")
508mm (20")
559mm (22")
Seat Depth 457mm (18")
508mm (20")
457mm (18")
508mm (20")
457mm (18")
508mm (20")
Seat Depth
Fitting 50mm Seat Depth Pad
406mm (16") 406mm (16") 406mm (16")

Please note that:

  • Depending on the seat cushion built into the chair the seat height* may vary slightly from that shown above.
  • If you choose the heavy-duty castors the seat height* will be increased by 25.4mm (1").

There is a choice of either a fixed waterfall back cushion or choose from seven interchangeable pressure management back cushions that enable the chair to be adapted to a single user’s changing needs or to adapt the chair to another user. This ensures greater longevity of its usage.

In addition, all interchangeable cushions can be repositioned to suit a user’s individual seating preferences and fibres added or removed from fibre filled cushions to adjust firmness. Covers can also be removed for cleaning or replacement.

Cair Back Cush


Waterfall

Individual fibre filled waterfall cushions, each of which are fully adjustable to accommodate maximum postural support. The waterfall back can be useful for those with mild Kyphosis, Scoliosis and reduced muscle mass on their back.

2020 Waterfall WB Repose Furniture C-air

Waterfall Lateral

The central cushion in this soft fibre filled waterfall back comes with in-built lateral supports which can provide some trunk support for those who have limited trunk control or balance, useful for those with early stages of neurological conditions such as MS or a Stroke survivor with limited residual impairments.

2020 Waterfall Lateral Repose Furniture C-air

Large Profile Headrest With Waterfall

The profile headrest conforms to the head and shoulders which can be useful for individuals with limited neck control with the waterfall back providing soft adjustable lumbar support.

2020 Large Profile Waterfall WB Repose Furniture C-air

Comfort Lateral

Soft fibre filled back with lateral support, which can be useful for those who have limited trunk control or balance. It can be useful for those with early stages of neurological conditions such as MS or a Stroke survivor.

2020 Comfort Lateral WB Repose Furniture C-air

Large Profile Headrest With Support Lateral

Firm foam lateral back cushion with soft fibre filled profile headrest can provide support for those who have limited trunk control or balance. The profile headrest can provide support to keep the head in good midline alignment which can be useful for those with early stages of neurological conditions such as MS or a Stroke survivor with limited residual impairments.

2020 Large Profile Support Lateral WB Repose Furniture C-air

Support Lateral

A foam filled back providing firmer lateral support with a soft fibre filled headrest. The firm lateral support maintains midline trunk alignment which can be useful for those post Stroke or early to mid-stages of neurological conditions.

2020 Support Lateral WB Repose Furniture C-air

Large Profile Headrest With Comfort Lateral

This back offers soft fibre filled cushions to provide head, shoulder and trunk support, which can be useful for older users who have lost some muscle control, supporting them in a good postural position with the head in a neutral position. This back can also be useful for early stages of neurological conditions to maintain good positioning without restricting activities.

2020 Large Profile Comfort Lateral WB Repose Furniture C-air

There is a choice of nine seat cushions each with different pressure management features. It can be removed and interchanged with one of the other seat cushion options. You can purchase one or more cushions to support the different needs of individuals who may use this chair. Cushions and covers are removable for cleaning and replacement.

With all pressure management seat cushions, we recommend a fabric with four way stretch properties to aid the reduction of shear and friction.

Cair Seat Cush


Viscoform

For those who have good posture and mobility but are seated for greater than one hour at a time and require pressure relief and supported comfort. This cushion has a high-density foam base which offers a supportive and firm seat base with a top layer of memory foam to allow immersion into the cushion, giving stability and a large surface area to reduce pressure levels.

visco form seat cushion Repose Furniture C-air

Easiform

For standard seating, our softest foam cushion with high quality Reflex foam filler for gentle comfort.

easiform seat cushion Repose Furniture C-air

Profile Viscoform

The profile version of the Viscoform cushion provides a pommel, which can support those with weak trunk or lower limb muscles who are prone to sliding down and forward in their chair or for those with lower limbspasticity to help maintain hips in the abducted position to create a good seating position.

profile visoform seat cushion Repose Furniture C-air

Liquiform

For those who have good posture and mobility but sit for long periods of time and require pressure relief and supported comfort. Recommended for people with limited muscle bulk or at risk of excessive weight loss. This cushion has a high-density foam which offers a supportive and firm seat base. The foam is topped with a fluid liquid gel in a soft silicone cover which provides a high level of pressure relief. The liquid gel helps to dissipate heat and constantly adapts to the user’s movement.

liquiform seat cushion Repose Furniture C-air

Celliform

For those sitting for long periods with specific comfort issues such as a high risk of pressure sores. Gelacell has a unique cell matrix that distributes pressure across the contact area, as it contours and yields in response to weight redistribution. Gelacell absorbs body heat, reducing the risk of creating an environment that could increase pressure risks, the grid design also encourages air circulation. Gelacell is clinically tested and passes all dermatological tests for skin contact.

Maximum weight of user 127 kg (20 stone)

celliform seat cushion Repose Furniture C-air

Coolform

For those sitting for long periods with specific comfort issues such as a high risk of pressure sores. This cushion uses the latest medical grade silicone gel technology allowing pressure to be evenly distributed. The gel conforms to the shape of the body and equalises to body temperature. The gel cells allow air to flow easily and Coolform is totally odourless and hypoallergenic.

coolform seat cushion Repose Furniture C-air

Profile Coolform

The profile version of the Coolform cushion provides a pommel, which can support those with weak trunk or lower limb muscles who are prone to sliding down and forward in their chair or for those with lower limbspasticity to help maintain hips in the abducted position to create a good seating position.

profile coolform seat cushion Repose Furniture C-air

Dynaform

For those at very high risk of developing pressure sores or a history of sores where the highest priority is to prevent further pressure damage. The Dynaform cushion is a dynamic alternating air cushion, which constantly changes the air levels within its air cells to recreate the effect of normal body movements, which provides constant pressure redistribution to prevent pressure build up.

Minimum weight of user 40 kg (6 stone 4lbs)
Maximum weight of user 121 kg (19 stone)

dynaform seat cushion Repose Furniture C-air

There is a choice of 5 detachable headrests all attached with a velcro tab.

If you would like to find out about what headrest cushions are available on other healthcare chairs from the Repose range please contact the sales department on 01384 567401.


Head Roll

The head roll is useful to reduce depth for anyone with reduced neck extension or needing to keep their head in a neutral position for tasks such as eating or drinking whilst maximising comfort and reducing effort.
head roll Repose Furniture C-air

Small Head Pillow

The small head pillow provides additional comfort for those who may require a softer surface to rest on whilst stopping hyper-extension at the neck when reclined or tilted.
small head pillow Repose Furniture C-air

Small Profile Headrest

Similar to the large profile headrest but support is focused more on the head and neck.
small profile headrest Repose Furniture C-air

Large Profile Headrest

This headrest provides a combination of lateral support at the head, neck and shoulders whilst offering additional comfort and reducing neck extension.
large profile headrest Repose Furniture C-air

Midline Headrest

The midline headrest provides postural support for those with some form of midline deficit, following a stroke resulting in proprioceptive deficit or unilateral neglect for example. It is also useful for those with reduced lateral muscle strength or tolerance (such as sternocleinomastoid).
midline headrest Repose Furniture C-air

The most important aspect to consider before purchasing any healthcare chair are the seating positions that are required to aid the conditions of the client and address any pressure and postural management needs.

The C-air is available with a Dual Tilt in Space (DTIS) or Single Tilt in Space (STIS) mechanism or a Standard Dual Motor Mechanism.  Each mechanism we offer is available in different sizes. Please check the Sizes Section for all user weights and dimensions before selecting your chair.  For demonstrations of the mechanisms described below please watch the relevant videos.


Single Tilt in Space/Dual Tilt in Space/Standard Dual Motor
DTIS and STIS Mechanisms (Common features)

The Tilt in Space movement features on both these mechanisms.  It allows the seat to back angle to remain the same whilst the whole seating system is tilted backwards.  This ensures that the angle of the hips, knees and ankles remain unaffected and the weight on the Ischial Tuberosities is reduced by redistributing the weight through the back. This constant angle also prevents shear and friction during movement.

This feature can also help when transferring someone in a sling as it can support better pelvic positioning by using gravity to position the user in the back of the chair in the optimal position.

Both these mechanisms have a rise position.  As the chair rises the seat tilts forward slightly, transferring the weight to the knees whilst taking away the pressure from your hips thus allowing you to walk away more easily from the chair.  The seat angle can be changed to provide further support by choosing the VAL Technology.

Dual Tilt in Space

Cair Dtis

Single Tilt in Space

Cair Stis


DTIS (Only)

As well as the Tilt in Space and Rise functions, described above, the Dual Tilt in Space mechanism also features an independent backrest recline and independent leg rest movement:

  • The independent recline allows the user to maintain flexibility over their body’s position, particularly the amount of hip flexion, enabling them to maximise comfort as well as managing health needs.
  • The independent leg rest offers the user additional flexibility over positioning, allowing them to either use it in conjunction with the recline feature to create the optimal posture for their body shape.

Standard Dual Motor

The Standard Dual Motor comes with an independent backrest recline and independent leg rest enables a whole range of movements and positions to aid posture and pressure management.  These movement features are described above in DTIS (only).  It also has a rise function for ease of standing, with optional VAL technology available all as described above.

Cair Standard Dual Motor


VAL Technology

An optional mechanism can be fitted under the chair that allows the rise angle to be set to support individuals to a standing position. Choose from three positions 10º, 20º or 30º. The higher the angle the lower the front of the chair becomes, providing more support when moving from a sitting to a standing position. A simple pin system allows you to set the angle required.

Variable Angle Lift Val Strip

dual motor tilt in space Repose Furniture C-air
single motor tilt in space Repose Furniture C-air
standard dual motor Repose Furniture C-air


Styleline Handset with On/Off Button

On some handsets you can choose to have an on/off emergency stop button. Please ask your supplier for the option available on your chair model.

Styleline handset with on off button Repose Furniture C-air

Accupak Rechargeable Battery System

The Accupak power pack enables you to use the chair away from a power supply. The battery provides an average of up to 100 adjustment cycles and will need recharging regularly to retain the quality of usage. It can be charged by simply plugging it in. The system sits out of sight under the chair and the charging outlet is built into the side of the chair.

Please note that the Accupak is not compatible with the Reading Lamp.

Full user instructions can be found in the user manual – please read these carefully before using the chair and Accupak. A copy of the manual can be found in the Brochures Section.

acc accupak 200 Repose Furniture C-air

20 Cycle Back Up Unit

This back up system comes as stand-alone unit that can carry out up to 20 chair adjustments. It should only be used as an emergency back-up system.

Full user instructions can be found in your user manual – please read these carefully before using the chair and the 20 cycle back up. A copy of the manual can be found in the Brochures Section.

acc bak 200 Repose Furniture C-air

Enclosure Skirt

The enclosure skirt hides the mechanism when the chair is either in the full rise or recline positions. This has been designed to stop small pets entering the mechanism whilst in the recline or rise positions.

enclosure kit Repose Furniture C-air

Below is a summary of our Standard two-year warranty terms and conditions.

There is also the option to upgrade to a five-year comprehensive care plan.

Standard Two-Year Warranty

Two years on mechanisms, frame, upholstery and electrics.

One year on air seat cushions and also on some additional accessories such as the Accupak, 20 Cycle Back up and Relaxor heat and massage systems.

Repose will repair or replace, at our discretion and free of charge to the original purchaser, any parts covered by this warranty and that on examination, are found to be defective in material and/or workmanship. The warranty is for parts and labour only. The product or parts requiring repair/replacement must be returned to Repose by you and you will be responsible for the costs of packaging, postage and any postal insurance.

Any products returned to Repose must be disinfected and should pose no health hazard.

For full details of the warranty including return of faulty products, exclusions etc. please see downloadable 2 year warranty document below.

2 Year Warranty Terms

Nail Varnish Spill

Spilt Tea


Upgrade to a Five-Year Warranty*

You can upgrade your standard warranty anytime within 14 days after delivery of the chair. You can upgrade to a unique five-year comprehensive care plan that includes:

  • Comprehensive cover for structural and accidental damage
  • Stain removal and repair at no extra cost to you
  • One call for advice and service
  • National network of professional technicians
  • Original value replacements

It truly offers real peace of mind, covering you against:

  • Structural damage to:
  • Accidental damage including:
  • Staining

For full details of the upgrade warranty please see the downloadable 5 year warranty document below.

5 Year Warranty Terms

Careplanhome

Wine & Cork

* non-commercial only
