Haven Air Chair

This rise recliner chair comes with unique adjustable air pressure cushioning in the lower backrest, seat cushion and leg rest all aimed at delivering significant pressure management.

Fabric Shown:
Outside arms and wings in Manilla Rosette;
Inside arms, wings and inner in blue vapour permeable multi-way stretch fabric.

The Haven with a choice of either Dual or Single Tilt in Space mechanisms maximises the positional options for the carer/user. Combine this with the air cushions situated in the backrest, seat cushion and leg rest, all of which work constantly to evenly distribute the user’s weight, this chair delivers exceptional pressure management and postural control.

The ability to alter the levels of air pressure allows for a truly personalised seating experience based on a user’s specific needs with a focus on the person, their activities and the impact of their condition.

The Haven rise recliner chair is excellent for clients with significant risk of pressure problems or existing pressure ulcers due to the air bag technology within the seat cushion, leg rest and back cushion.

The air cushions work constantly to evenly distribute the user’s weight ensuring that there are no pressure points that might restrict circulation. The high level of pressure relief is due to the air cushions constant movement and repositioning of pressure. This allows for a truly personalised seating experience based on a user’s specific needs with a focus on the person, their activities and the impact of their condition.

It has been designed to provide the highest level of pressure relief for conditions, such as:

  • Motor Neurone disease and other neurological conditions
  • End of life clients e.g. cancer
  • Frail elderly

With a choice of Dual or Single Tilt in Space motors, the Haven is ideal for clients with changing and deteriorating neurological conditions and those who require assisted movement to reduce the problems of skin breakdown.  It has a rise option to maintain client independence when they wish to get up and walk as well as choice and control to change position to support rest and purposeful activity.

The Haven comes with a chaise which helps to prevent shear and friction as well as the option of Coolform gel in the arm rests for comfort and additional pressure relief.

The chair can be moved easily from one room to another to reduce the need for manual handling with carers, but also to negate the need to move a client at the end of life where any move can be painful and distressing. Ideal as part of a 24-hour postural care programme it can also be used with either a mobile or overhead hoist to support safe moving and handling techniques for carers.

The chair is ideal for use in health environments including nursing homes or for end of life care clients and residents.

Environments:

healthcare 2 Repose Furniture Haven nursing and care home Repose Furniture Haven home Repose Furniture Haven

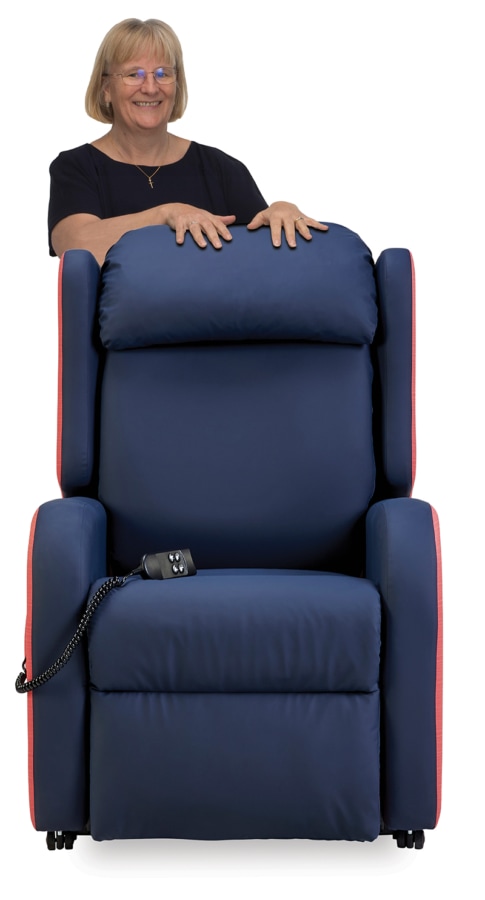

Kate With Haven

Kate Signature1Kate Sheehan - DipCOT MBAOT
Independent Occupational Therapist

For more information on seating posture and assessment please see our downloadable Clinical Posture Guide in the Brochure Section.

The Haven comes with a range of key features to aid pressure management, postural control and comfort. The key features listed below are standard, you can purchase additional features and these are detailed in the Optional Accessories Section.

Please note that all air bag cushions are pre-set at manufacturer, but they can be altered by a trained care professional using the air valve and pumps. They can all be removed for cleaning or replacement.

For more information on seating posture and assessment please see our downloadable Clinical Posture Guide in the Brochure Section.

Mechanisms

The Haven is available with either a Dual Tilt in Space (DTIS) or a Single Tilt in Space (STIS) mechanism.  The Tilt in Space (TIS) movement allows the seat to back angle to remain the same whilst the whole seating system is tilted backwards which prevents shearing and friction.

The Dual Tilt in Space mechanism has more positional movement options than the STIS as it also has independent backrest recline and independent leg rest movement.  This enables a greater range of positions to aid pressure management, postural control and comfort.

For further details on these mechanisms, with video clips, visit the Mechanism Section.

Haven Recline Motion


Pressure Management Back Cushions

The Haven comes with unique split contoured back comprising of two separate and distinct cushions which are detailed below.



Lower Back Air Cushion

This supports the thoracic and lumbar part of the back through a one cell air bag surrounded by a soft foam surface. It provides a high level of pressure relief due to its constant movement and repositioning of pressure.

Haven Lower Back Air Cushion


Top Head Cushion

The top head cushion is Dacron fibre filled and can be adjusted providing additional head support and comfort. The padding levels can be adjusted through the addition or removal of fibres – simply unzip the head cover to gain access to the fibres.

The cushions can be positioned on the back frame using the Velcro. The covers are removable for replacement and cleaning. See Back Cushion Section for more details on the air cushion.

Haven Top Head Cushion


Pressure Management Seat Cushions

The seat cushion contains a single cell air cushion.   Users need to have appropriate pelvic stability and core trunk strength to accommodate the air pressure changes and related movement in this single air cushion.

The seat cushion and chaise are combined and the cushions and covers are removable for cleaning and replacement.  With this seat cushion we recommend a fabric with four way stretch properties to aid reduction of shear and friction.  See Seat Cushion Section for details of the cushion.

Haven Seat Cushion


Leg Rest Cushion

The single cell airbag provides consistent support across the whole of the thighs, back of the knees and calf and reduces the risk of pressure problems.

Haven Footrest Airbag


Castors

The Haven comes with durable castors built in as standard. There is the option to upgrade to either lockable castors or glides.

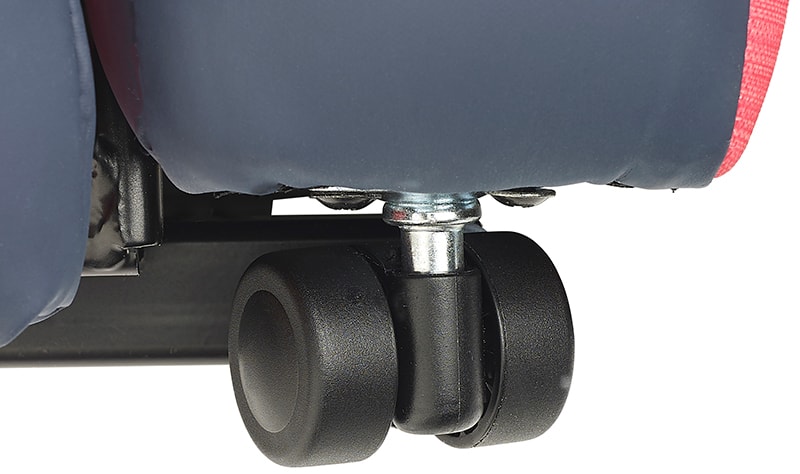

Haven Castor


Handset Pocket on Arm

This comes fitted as standard on the right hand side arm. As an optional extra you can choose to have this positioned differently.

Haven Handset

The following features can be purchased to enhance the functionality of the chair.

High Wear Areas

The following covers, in matching fabric, can be purchased to protect high wear areas:

  • Full length arm covers
  • Head cover
  • Seat cover

Full Length Arm Cover

Head Cover

Seat Cover


Headrest

There are five headrests to choose from, all of which come with a Velcro tab allowing them to fit over the top cushions.  For further details on each of these options please refer to the Headrests Section.

  • Head roll
  • Small head pillow
  • Small profile headrest
  • Large profile headrest
  • Midline headrest
Head Roll

Safety Options*

For further details on the options below please refer to Safety Options Section.

  • Styleline handset with ON/OFF button
  • 20 cycle back up unit
  • Accupak rechargeable battery system for mains free usage
  • Enclosure skirt


Coolform Gel*

There is an option of Coolform gel in the arm rests for comfort and additional pressure relief.



Castor and Glides upgrade*

There is the option to upgrade to either lockable castors or glides which are suitable for wooden or laminated floors.

Important note – If you choose the lockable castors please note that this will increase the seat height by 1" (25.4mm).



Carer Loop on back of the chair*



Handset Pocket Positioning*

At the point of ordering you may choose to have the pocket on the left-hand side.



* Please note that some of these additional features will need to be fitted at the point of manufacture.

The most important aspect to consider before purchasing any healthcare chair are the seating positions that are required to aid the conditions of the client and address any pressure and postural management needs.

The Haven is available with either a Dual or Single Tilt in Space mechanism. Please check the Sizes Section for all user weights and dimensions before selecting your chair. For demonstrations of the mechanisms described below please watch the relevant videos.

If you would like to find out about what mechanisms are available on other healthcare chairs from the Repose range please see the comparison chart below.


Single Tilt in Space/Dual Tilt in Space
DTIS and STIS (Common features)

The Tilt in Space movement features on both these mechanisms. It allows the seat to back angle to remain the same whilst the whole seating system is tilted backwards. This ensures that the angle of the hips, knees and ankles remain unaffected and the weight on the Ischial Tuberosities is reduced by redistributing the weight through the back. This constant angle also prevents shear and friction during movement.

This feature can also help when transferring someone in a sling as it can support better pelvic positioning by using gravity to position the user in the back of the chair in the optimal position.

Both these mechanisms have a rise position. As the chair rises the seat tilts forward slightly, transferring the weight to the knees whilst taking away the pressure from your hips thus allowing you to walk away more easily from the chair.

Single Tilt in Space

Multi C Air Stis

Dual Tilt in Space

Mutli C Air Dtis


DTIS (Only)

As well as the Tilt in Space and Rise functions, described above, the Dual Tilt in Space mechanism also features an independent backrest recline and independent leg rest movement:

  • The independent recline allows the user to maintain flexibility over their body’s position, particularly the amount of hip flexion, enabling them to maximise comfort as well as managing health needs.
  • The independent leg rest offers the user additional flexibility over positioning, allowing them to either use it in conjunction with the recline feature to create the optimal posture for their body shape.

single motor tilt in space Repose Furniture Haven
dual motor tilt in space Repose Furniture Haven

Overall Weight Limits

The Haven has a weight limit of 95 Kg (15 stone) as standard on the small model. On the medium and large models the weight limit can be up to 127 Kg (20 stone).

Important Dimensions

  Petite
(NEW)
Small Medium Large
Seat Height* 406mm (16") 432mm (17") 483mm (19") 533mm (21")
Seat Width 406mm (16") 457mm (18") 508mm (20") 559mm (22")
Seat Depth 457mm (18") 457mm (18") 508mm (20") 508mm (20")

Standard Back Height:

660mm/685mm (26/27") 660mm/685mm (26/27") 711mm/736mm
(28/29")
711mm/736mm
(28/29")

* Please note that the seat, back and arm heights may change slightly due to submersion in the air seat cushion.

Standard Arm Height: 178mm (7")

Please note that:

  • Please note that if you choose the heavy-duty castors the seat height* will be increased by 25.4mm (1")

The Haven comes with a single option for the backrest cushion – the split contoured air cushion back as described below.

If you would like to find out about what back cushions are available on other healthcare chairs from the Repose range please see the comparison chart below.

Haven Back Cushion Diagram

The back is divided into two distinct areas, the thoracic and lumber part of the back being supported by a one cell air bag and the top head cushion is Dacron fibre filled and can be adjusted providing additional head support and comfort.

This back can be useful for anyone with limited ability to independently alter position, for example those who have suffered a stroke or with a brain injury, MND, spinal injury and palliative care.  The Dacron, has the ability, to transfer heat which can make it very useful for client groups who rely on regulated temperature such as MS.

The back air cushion and cover can be removed using the zip. The pump is easy to use and can be found at the base of the back. The air level on the cushion is pre-set before despatch. For more details please see the User Manual in the Brochure Section.

The Haven comes with one seat cushion option which contains a single cell air cushion which sits under a layer of Dacron.

It has a combined seat cushion and chaise. The cushions and covers are removable for cleaning or replacement. With this seat cushion we recommend a fabric with four way stretch properties to aid reduction of shear and friction.

If you would like to find out about what seat cushions are available on other healthcare chairs from the Repose range please see the comparison chart below.

Haven Seat Cushion


Air Cushion

For those who currently have or who are at a high risk of pressure problems or sores and who have limited ability to change their position and relieve the pressure on their sacrum and buttocks. The Dacron layer transfers heat which can make it very useful for groups who rely on regulated temperature such as MS.

Users need to have appropriate pelvic stability and core trunk strength to accommodate the air pressure changes and related movement in this single air cushion.

single air seat cushion haven Repose Furniture Haven

There is a choice of 5 detachable headrests all attached with a velcro tab.

If you would like to find out about what headrest cushions are available on other healthcare chairs from the Repose range please see the comparison chart below.


Head Roll

The head roll is useful to reduce depth for anyone with reduced neck extension or needing to keep their head in a neutral position for tasks such as eating or drinking whilst maximising comfort and reducing effort.
head roll Repose Furniture Haven

Small Head Pillow

The small head pillow provides additional comfort for those who may require a softer surface to rest on whilst stopping hyper-extension at the neck when reclined or tilted.
small head pillow Repose Furniture Haven

Small Profile Headrest

Similar to the large profile headrest but support is focused more on the head and neck.
small profile headrest Repose Furniture Haven

Large Profile Headrest

This headrest provides a combination of lateral support at the head, neck and shoulders whilst offering additional comfort and reducing neck extension.
large profile headrest Repose Furniture Haven

Midline Headrest

The midline headrest provides postural support for those with some form of midline deficit, following a stroke resulting in proprioceptive deficit or unilateral neglect for example. It is also useful for those with reduced lateral muscle strength or tolerance (such as sternocleinomastoid).
midline headrest Repose Furniture Haven

All our health fabrics are Waterproof, Anti-MRSA, Anti-bacterial, Anti-fungal, Crib 5 and bleach cleanable. All cushions and cushion covers are removable for cleaning purposes.

For our full range of health fabrics please view our:

Vinyl Fabrics

VP Range

Fabric Swatches 960

The Haven comes with the option to choose from the following safety features:


Styleline Handset with On/Off Button

On some handsets you can choose to have an on/off emergency stop button. Please ask your supplier for the option available on your chair model.

Styleline handset with on off button Repose Furniture Haven

20 Cycle Back Up Unit

This back up system comes as stand-alone unit that can carry out up to 20 chair adjustments. It should only be used as an emergency back-up system.

Full user instructions can be found in your user manual – please read these carefully before using the chair and the 20 cycle back up. A copy of the manual can be found in the Brochures Section.

acc bak 200 Repose Furniture Haven

Accupak Rechargeable Battery System

The Accupak power pack enables you to use the chair away from a power supply. The battery provides an average of up to 100 adjustment cycles and will need recharging regularly to retain the quality of usage. It can be charged by simply plugging it in. The system sits out of sight under the chair and the charging outlet is built into the side of the chair.

Please note that the Accupak is not compatible with the Reading Lamp.

Full user instructions can be found in the user manual – please read these carefully before using the chair and Accupak. A copy of the manual can be found in the Brochures Section.

acc accupak 200 Repose Furniture Haven

Enclosure Skirt

The enclosure skirt hides the mechanism when the chair is either in the full rise or recline positions. This has been designed to stop small pets entering the mechanism whilst in the recline or rise positions.

enclosure kit Repose Furniture Haven

Below is a summary of our Standard two-year warranty terms and conditions.

There is also the option to upgrade to a five-year comprehensive care plan.

Standard Two-Year Warranty

Two years on mechanisms, frame, upholstery and electrics.

One year on air seat cushions and also on some additional accessories such as the Accupak, 20 Cycle Back up and Relaxor heat and massage systems.

Repose will repair or replace, at our discretion and free of charge to the original purchaser, any parts covered by this warranty and that on examination, are found to be defective in material and/or workmanship. The warranty is for parts and labour only. The product or parts requiring repair/replacement must be returned to Repose by you and you will be responsible for the costs of packaging, postage and any postal insurance.

Any products returned to Repose must be disinfected and should pose no health hazard.

For full details of the warranty including return of faulty products, exclusions etc. please see downloadable 2 year warranty document below.

Nail Varnish Spill

Spilt Tea


Upgrade to a Five-Year Warranty*

You can upgrade your standard warranty anytime within 7 days after delivery of the chair. You can upgrade to a unique five-year comprehensive care plan that includes:

  • Comprehensive cover for structural and accidental damage
  • Stain removal and repair at no extra cost to you
  • One call for advice and service
  • National network of professional technicians
  • Original value replacements

It truly offers real peace of mind, covering you against:

  • Structural damage to:
  • Accidental damage including:
  • Staining

For full details of the upgrade warranty please see the downloadable 5 year warranty document below.

5 Year Warranty Terms
